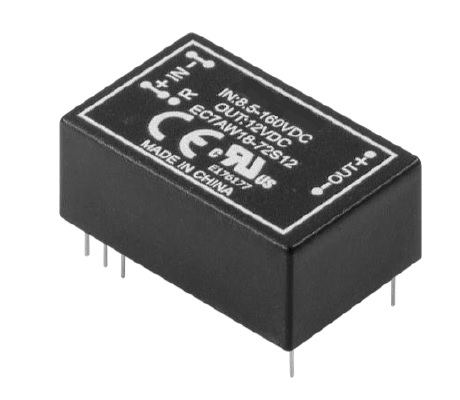

EC7AW18 – 10 Watt

EC7AW18 Series, 10 Watt DC-DC Converter

1.25″x 0.8″ Package

3000 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Rail Approved



Features

  • 10W Isolated Output
  • Fixed Switching Frequency
  • Efficiency to 88%
  • Regulated Outputs
  • Remote On/Off
  • Operating Case Temperature -40 to +100℃
  • Low No Load Power Consumption
  • Fully protected (OTPOCP/OVP/UVLO)
  • UL62368-1 2nd (Reinforce Insulation) Approval
  • CB Test Certificate IEC62368-1
  • EN55032/EN55035/EN50155 Compliant with External Circuits
  • Fire & Smoke Meets EN45545-2
  • Shock & Vibration EN50155 (EN61373) Compliant
  • 5000m Operating Altitude

Models and Ratings

ModelInput VDCOutput VDCOutput CurrentSize (2"x 1")
EC7AW18-72S058.5~160 Volts5 Volts2000mA31.8 x 20.3 x 12.7mm
EC7AW18-72S128.5~160 Volts12 Volts835mA31.8 x 20.3 x 12.7mm
EC7AW18-72S158.5~160 Volts15 Volts668mA31.8 x 20.3 x 12.7mm

Dual Output Models

ModelInput VDCOutput 1Output 2Size (2"x 1")
EC7AW18-72D058.5~160 Volts+5 Volts / +1000mA-5 Volts / -1000mA31.8 x 20.3 x 12.7mm
EC7AW18-72D128.5~160 Volts+12 Volts / +416mA-12 Volts / -416mA31.8 x 20.3 x 12.7mm
EC7AW18-72D158.5~160 Volts+15 Volts / +333mA-15 Volts / -333mA31.8 x 20.3 x 12.7mm
